OKOUME STRUCTURAL PLY

Structural plywood is a durable and stable variety of plywood that is extremely versatile.
While it is most suited for internal cladding applications, a wide range of softwood and hardwood species of wood are the sources of our external plywood. We also treat our structural plywood with preservatives, to ensure durability in exterior weather conditions.

  • SIZE: 1200x1800/1200x2400/1200x2700
  • FACE: Okoume/Bintangor/Eucalyptus
  • BACK: Okoume/Bintangor/Eucalyptus
  • CORE: Russian Birch/ Baltic Birch/ Eucalyptus/ Poplar/Combi
  • GLUE: Phenolic Resin Glue,EN314-2 Class-3, BFU100, WBP Grade, A Bond
  • PROCESSING: TWO TIMES HOT-PRESS & ONE TIMES SANDING
  • THICKNESS TOLERANCE: 0.2~0.5 mm accordinng to ragne of thickness
  • USAGE: Roof sheathing/Flooring applications

  • Parameters
  • SIZE: 1200x1800/1200x2400/1200x2700
  • FACE: Okoume/Bintangor/Eucalyptus
  • BACK: Okoume/Bintangor/Eucalyptus
  • CORE: Russian Birch/ Baltic Birch/ Eucalyptus/ Poplar/Combi
  • GLUE: Phenolic Resin Glue,EN314-2 Class-3, BFU100, WBP Grade, A Bond
  • PROCESSING: TWO TIMES HOT-PRESS & ONE TIMES SANDING
  • THICKNESS TOLERANCE: 0.2~0.5 mm accordinng to ragne of thickness
  • USAGE: Roof sheathing/Flooring applications

Product Details:

 BRAND NAME CAMELPLY

FACE/BACKOkoume/Bintangor/Eucalyptus
 SIZE
 1200x1800/1200x2400/1200x2700
 GLUE
 A-BOND(Phenolic WBP Glue)
 CORE Russian Birch/ Baltic Birch/ Eucalyptus/Combi
 THICKNESS TOLERANCE 0.2~0.5mm
KEY PROCESSINGTwo Times Times Hot-Press & One Times Sanding
 USING TIMES Roof sheathing/Flooring applications
CERTIFICATE CE; FCS; ISO 9001; AS2269.


General Features of structural plywood

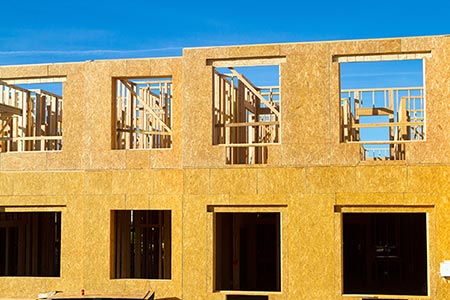

Structural plywood is used in many residential development projects.

This engineered wood product contains Type A phenolic adhesive. This makes it an ideal choice for load-bearing applications.















  • Tested for Type A Bond and Stress
  • Perfect choice for under roof or flooring applications
  • Provides a great alternative to particleboard for wet areas
  • Brilliant alternative for trailer and truck decks
  • Used for bracing of timber frames
  • Available in sheet sizes 2400×1200 and 2700×1200
  • Available in thicknesses ranging from 4mm to 32mm
  • With impregnated overlays to cater to concrete formply

Benefits:

  • Structural plywood can be painted
  • It can keep heat in or out as needed
  • It is lightweight and does not present difficulties in handling.
  • No special tools needed for its installation
  • Resist to heavy blows
  • Treatable with preservative for decay prevention
  • Offers a high degree of sound and thermal insulation

CD grade plywood serves the purpose of hoardings and flooring where appearance is not a big issue. On the other hand, BB and CC are smarter choices for paint finishes, as these also offer structural strength.


Okoume Plywood

Made with the wood of the Okoume tree and sometimes referred to as Okoume Mahogany, Okoume plywood normally has a very attractive, somewhat lustrous look that makes it suitable for some fine woodworking applications. Its color is typically pinkish-brown to pale red, and its texture is finely uniform. With a straight to barely wavy grain that sometimes has a slightly interlocked appearance, it offers high strength to weight ratio. Although not known for its water resistance, Okoume plywood is an exceptional choice for building racing boats as well as for other applications in which strength and light weight are desirable. Kitchen cabinets, furniture, and certain types of packaging may be constructed using this type of plywood. It’s a great choice for use in projects where appearance plays a key role.

double, layer, okoume, marine, plywood, wood, boat, plank
Double layer of Okoume Marine plywood boat, David Flanagan

Origin

Also known as combogala or gaboon, Okoume is found only in the Congo, Gabon, and Africa’s equatorial Guinea. The tree grows rapidly and regenerates quickly in clearings, making it a good choice when concerns about renewability arise. Although it is nicknamed “Okoume Mahogany” due to its medium mahogany hue, it is not a true mahogany species.

Quality, Size, and Thicknesses

Okoume wood is typically of high quality, often offering the same look as Okoume veneer products. Premium two-sided marine grade panels are normally 4’ x 8’, and are generally available in a number of thicknesses ranging from 2mm (1/8”) to 25mm (1”). Okoume is a very soft wood and plywood made with this resource is not normally pressure treated. Composition may vary, with cores sometimes being made with pine, poplar, or hardwood for added strength. Glues used in manufacturing this type of plywood include MR, E0, E1, E2, Melamine, and WBP.

What to Look Out for

Because Okoume plywood is not rot-resistant, it must be thoroughly sealed to prevent moisture from penetrating. Okoume panels and projects made with them are normally painted of finished with epoxy and varnish to prevent potential problems caused by exposure to the moisture typical of marine and aquatic environments.

Availability and Pricing

Okoume plywood is available at some large retailers as well as at suppliers that specialize in Marine plywood and related products. Prices vary widely depending on thickness, core quality, source, and of course, any associated costs such as shipping. Keep in mind that you’ll probably pay more for Okoume than for other types of plywood, primarily due to the costs associated with shipping raw goods to manufacturing sites.

Professional Recommendations

Unlike most other types of plywood, Okoume is almost exclusively marketed for use in marine applications. This doesn’t mean you can’t try your hand at using it in other projects; just remember that all edges and faces must be very well sealed if the wood is going to be exposed to moisture. Its durability, light weight, and attractive appearance as well as its exotic origins make it a fantastic choice for woodworking, and the fact that various thicknesses and core types are available add to its overall versatility.

Whether you’re building a boat or re-facing kitchen cabinets, consider using Okoume plywood. It’s a great choice for these applications and so much more.

OKOUME STRUCTURAL PLY
Structural plywood is a durable and stable variety of plywood that is extremely versatile.
While it is most suited for internal cladding applications, a wide range of softwood and hardwood species of wood are the sources of our external plywood. We also treat our structural plywood with preservatives, to ensure durability in exterior weather conditions.
